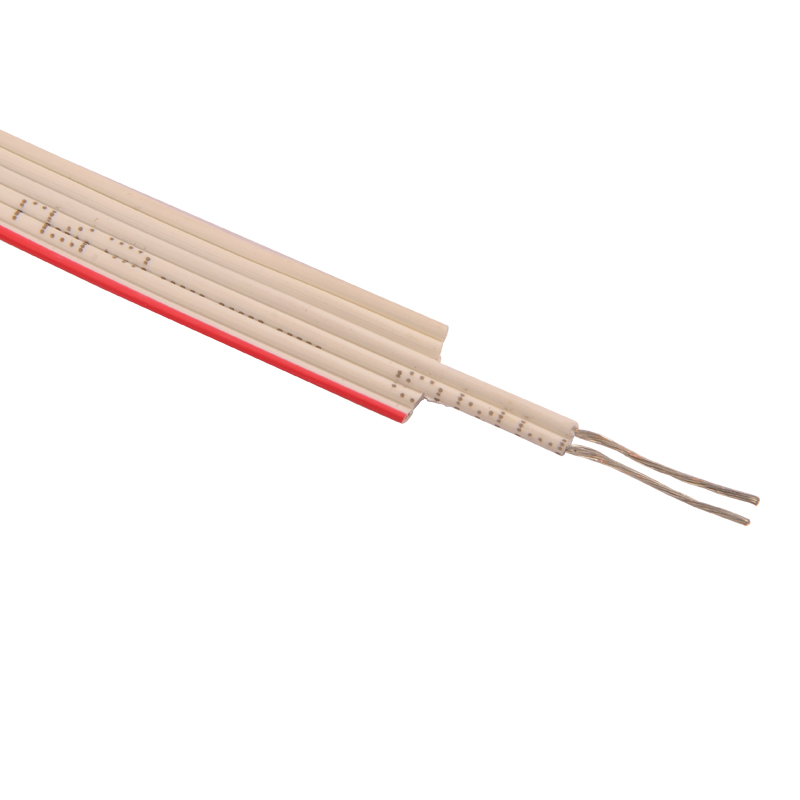

UL2651 Flat Ribbon Cable
PVC Flat Ribbon Orderly Cable for Electrical Connection

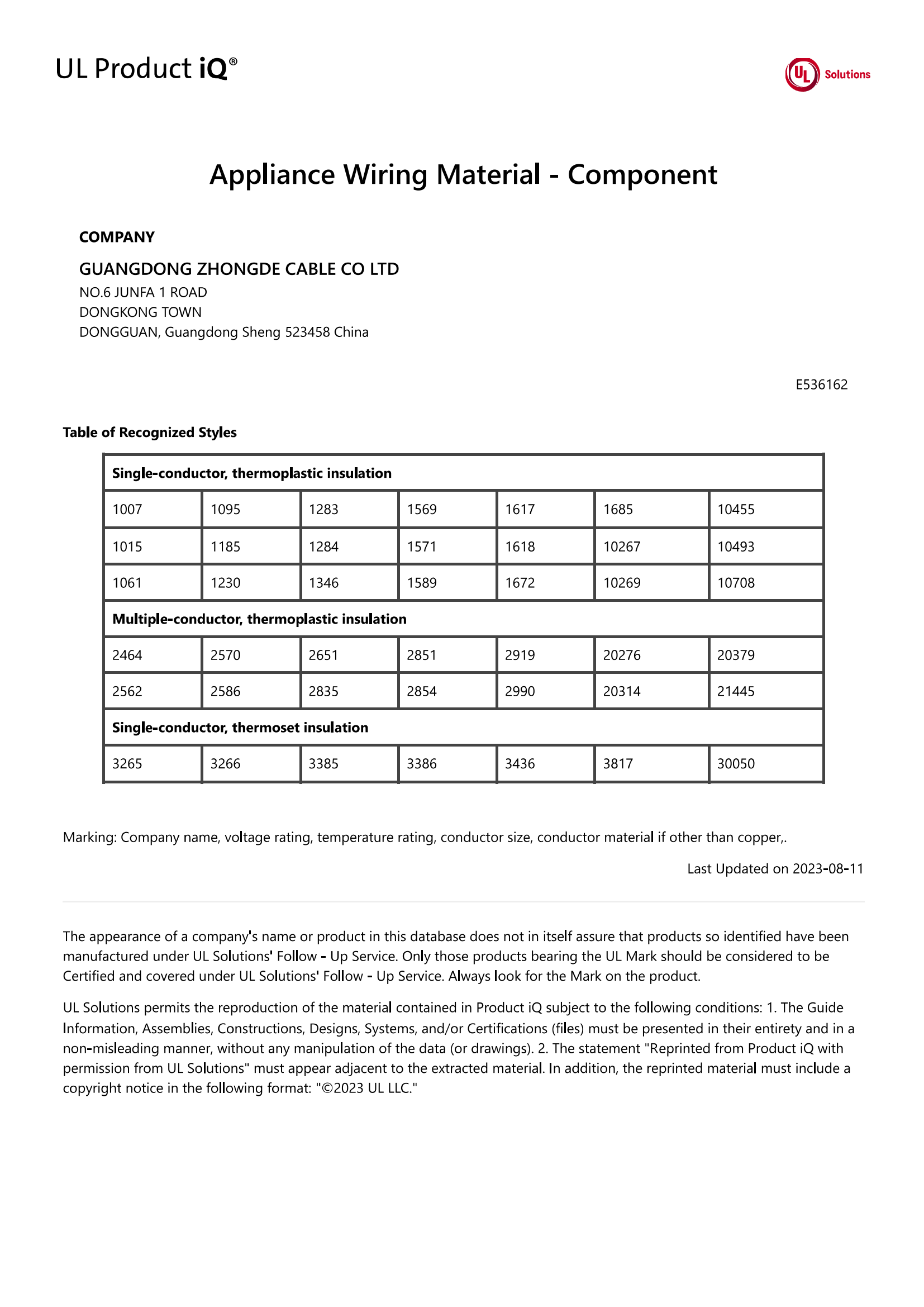

| 产品说明 Product Description | |||||||
| >额定温度：105℃ >额定电压：300V >参考标准：UL758,UL1581 >导体使用单支或绞合28~26AWG 镀锡或裸铜 >PVC 绝缘，符合ROHS 环保标准 >通过ULWW-1 及JQA-F-Mark 阻燃测试 >使用标准绝缘厚度、易裁线、易剥皮 >用于一般电子、电器设备内部连接线 | >Rated temperature:105℃ >Rated voltage:300V >Reference standard:UL758,UL1581 >Solid or stranded,tinned or bare copper conductor 28~26AWG >PVC insulation,comply with ROHS environmental standard >Passes ULWW-1 and JQA-F-Mark flame test >Uniform insulation thickness to ensure easy stripping and cutting >For general purpose internal wiring of appliance | ||||||
产品结构 Cable Construction | |||||||
| 导体 Conductor | 绝缘 Insulation | 最大导体电阻 Max.COND.Resistance (Q/km,20℃,DC) | |||||
| 规格 AWG | 间距*(mm) Pitch* | 构造(No./mm) Construction | 外径(mm) DIA. | 芯数 (No.) | 绝缘厚度(mm) Insulation Thickness | 外径(mm) 0.D. | |
| 28 | 1.27 | 7/0.127 | 0.38 | 2 | 0.27 | 0.92×2.54 | 239 |
| 3 | 0.27 | 0.92×3.81 | |||||
| 4 | 0.27 | 0.92×5.08 | |||||
| 5 | 0.27 | 0.92×6.35 | |||||
| 6 | 0.27 | 0.92×7.62 | |||||
| 7 | 0.27 | 0.92×8.89 | |||||
| 8 | 0.27 | 0.92×10.16 | |||||
| 9 | 0.27 | 0.92×11.43 | |||||
| 10 | 0.27 | 0.92×12.70 | |||||
| 11 | 0.27 | 0.92×13.97 | |||||
| 12 | 0.27 | 0.92×15.24 | |||||
| 13 | 0.27 | 0.92×16.51 | |||||
| 14 | 0.27 | 0.92×17.78 | |||||
| 26 | 1.50 | 7/0.16 | 0.48 | 2 | 0.44 | 1.35×2.85 | 150 |
| 3 | 0.44 | 1.35×4.35 | |||||
| 4 | 0.44 | 1.35×5.85 | |||||
| 5 | 0.44 | 1.35×7.35 | |||||
| 6 | 0.44 | 1.35×8.85 | |||||
| 7 | 0.44 | 1.35×10.35 | |||||
| 8 | 0.44 | 1.35×11.85 | |||||
| 9 | 0.44 | 1.35×13.40 | |||||
| 10 | 0.44 | 1.35×14.90 | |||||
| 11 | 0.44 | 1.35×16.40 | |||||
| 12 | 0.44 | 1.35×17.90 | |||||
| 13 | 0.44 | 1.35×19.40 | |||||
