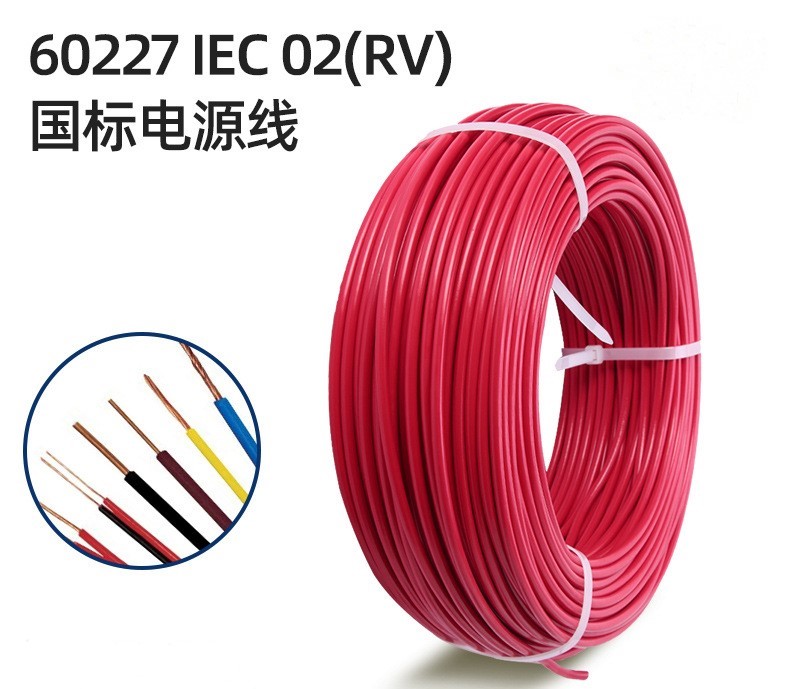

60227 IEC 02（RV） PVC Insulated Wire
ZHONGDE
70℃
450/750V
GB/T 5023.3-2008
60227 IEC 02（RV） PVC Insulated Wire
| 产品说明 Product Description | |||||||
| >额定温度：70℃ >额定电压：450/750V >参考标准：GB/T5023.3-2008 >导体使用绞合1.5~6mm²裸铜 >PVC 绝缘，符合ROHS 环保标准 > 通过GB/T18380阻燃测试 >使用标准绝缘厚度、易裁线、易剥皮 >用于一般电子、电器设备内部连接线 | >Rated temperature:70℃ >Rated voltage:450/750V >Reference standard:GB/T5023.3-2008 >Stranded bare copper conductor 1.5~6mm² >PVCinsulation,comply with ROHS environmental standard >Passes GB/T18380 flame test >Uniform insulation thickness to ensure easy stripping and cutting >For general purpose internal wiring of appliance | ||||||
| 产品结构 Cable Construction | |||||||
| 导体 Conductor | 绝缘 Insulation | 最大导体电阻 Max.COND.Resistance (Q/km,20℃,DC) | 耐压强度 Dielectric Strength (VAC,1min) | ||||
| 面积 Crosssection (mm²) | 构造(No./mm) Construction | 外径(mm) DIA. | 厚度(mm) Thickness | 外径(mm) 0.D. | |||
| 1.5 | 30/0.25 | 1.58 | 0.71 | 3.00 | 13.3 | 2500 | |
| 2.5 | 49/0.25 | 2.02 | 0.82 | 3.65 | 7.98 | 2500 | |
| 4 | 56/0.30 | 2.59 | 0.86 | 4.30 | 4.95 | 2500 | |
| 6 | 84/0.30 | 3.17 | 0.87 | 4.90 | 3.30 | 2500 | |
