AVVR
ZHONGDE
70℃
300/300V
JB/T 8734-2016

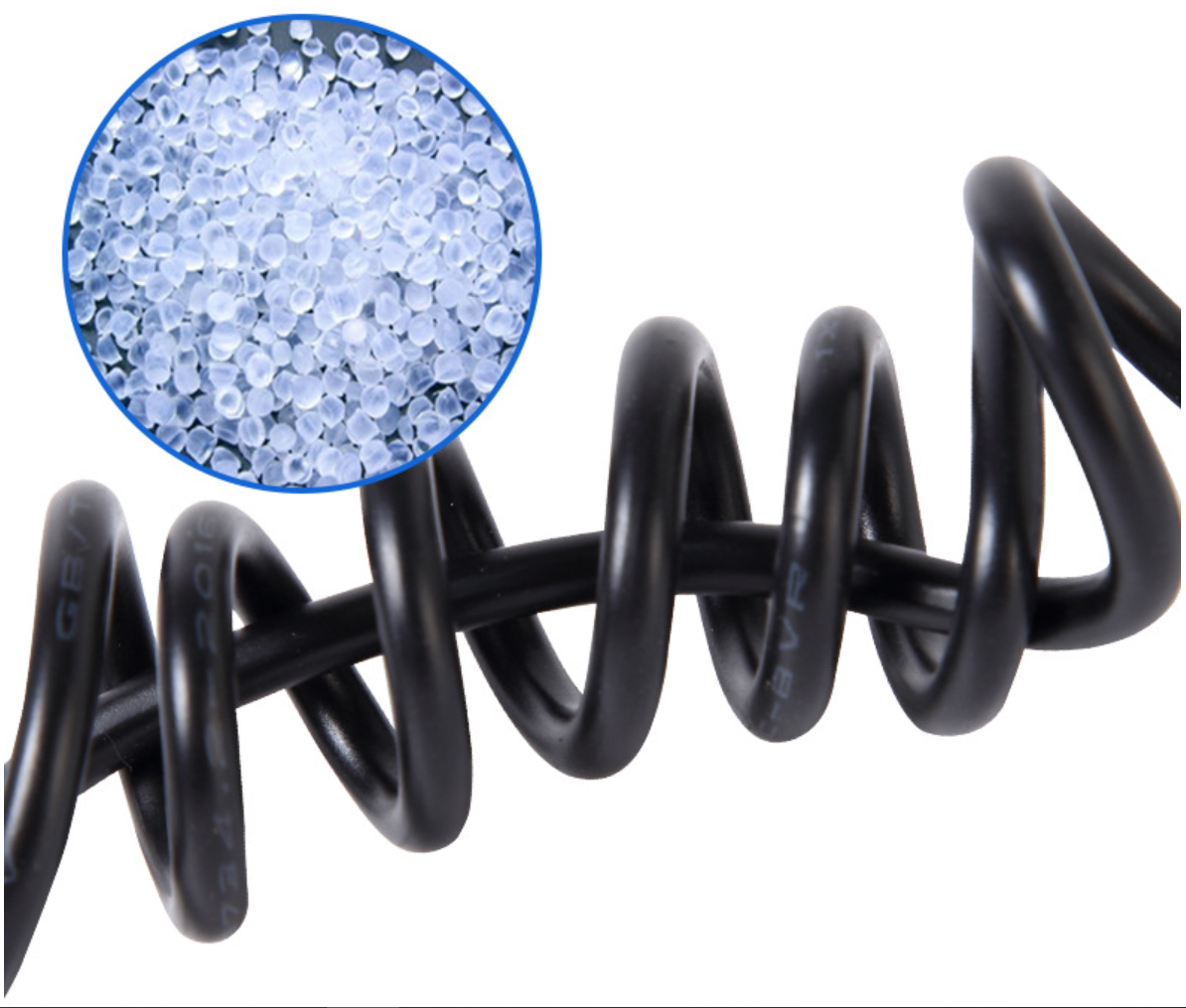

AVVR PVC Insulated and Jacketed Flexible Cords
| 产品说明 Product Description | ||||||||
| >额定温度：70℃ >额定电压：300/300V >参考标准：JB/T 8734-2016 >导体使用绞合0.08~0.4mm² 裸铜 >PVC 绝缘，符合ROHS 环保标准 >PVC 护套，符合ROHS 环保标准 >通过GB/T 18380阻燃测试 >使用标准绝缘厚度、易裁线、易剥皮 >用于一般电子、电器电源连接线 | >Rated temperature:70℃ >Rated voltage:300/300V >Reference standard:JB/T 8734-2016 >Stranded bare copper conductor 0.08~0.4mm >PVC insulation,comply with ROHS environmental standard >PVC jacket,comply with ROHS environmental standard >Passes GB/T 18380 flame test >Uniform insulation thickness to ensure easy stripping and cutting >For general purpose internal wiring of appliance | |||||||
| 产品结构 Cable Construction | ||||||||
| 导体 Conductor | 绝缘 Insulation | 护套 Jacket | 最大导体电阻 Max.COND. Resistance (Q/km,20℃,DC) | |||||
| 面积 Crosssection (mm) | 构造(No./mm) Construction | 外径(mm) DIA. | 芯数 (No.) | 厚度(mm) Thickness | 外径(mm) 0.D. | 厚度(mm) Thickness | 外径(mm) 0.D. | |
| 0.08 | 7/0.12 | 0.36 | 2 | 0.42 | 1.20 | 0.65 | 3.70 | 247 |
| 2.50×3.70 | ||||||||
| 0.12 | 7/0.15 | 0.45 | 2 | 0.43 | 1.30 | 0.65 | 3.90 | 158 |
| 2.60×3.90 | ||||||||
| 4 | 0.43 | 1.30 | 0.63 | 4.40 | ||||
| 7 | 0.43 | 1.30 | 0.65 | 5.20 | ||||
| 12 | 0.43 | 1.30 | 0.65 | 6.70 | ||||
| 16 | 0.43 | 1.30 | 0.65 | 7.40 | ||||
| 0.20 | 12/0.15 | 0.6 | 2 | 0.43 | 1.45 | 0.65 | 4.20 | 92.3 |
| 2.80×4.20 | ||||||||
| 4 | 0.43 | 1.45 | 0.65 | 4.80 | ||||
| 7 | 0.43 | 1.45 | 0.63 | 5.60 | ||||
| 12 | 0.43 | 1.45 | 0.69 | 7.40 | ||||
| 16 | 0.43 | 1.45 | 0.84 | 8.50 | ||||
| 0.30 | 16/0.15 | 0.69 | 2 | 0.53 | 1.75 | 0.65 | 4.80 | 69.2 |
| 3.10×4.80 | ||||||||
| 4 | 0.53 | 1.75 | 0.64 | 5.50 | ||||
| 7 | 0.53 | 1.75 | 0.63 | 6.50 | ||||
| 12 | 0.53 | 1.75 | 0.82 | 8.90 | ||||
| 16 | 0.53 | 1.75 | 0.84 | 9.90 | ||||
| 0.40 | 23/0.15 | 0.83 | 2 | 0.54 | 1.90 | 0.65 | 5.10 | 48.2 |
| 3.20×5.10 | ||||||||
| 4 | 0.54 | 1.90 | 0.61 | 5.80 | ||||
| 7 | 0.54 | 1.90 | 0.65 | 7.00 | ||||
| 12 | 0.54 | 1.90 | 0.85 | 9.60 | ||||
| 16 | 0.54 | 1.90 | 0.84 | 10.60 | ||||
