UL 20379 Al-mylar Shield 80℃ Environmentally Friendly Multi Conductor Wire

  • UL 20379

  • Zhongde Cable

  • 80℃

  • 30V

  • UL758, UL1581

Availability:


Introduction of UL 20379 Al-mylar Shield 80℃ Environmentally Friendly Multi Conductor Wire:

Adherence to Industry Standards: A Mark of Quality

UL20379 is meticulously designed to meet and exceed the rigorous standards of UL758 and UL1581. This dedication to adherence ensures that our product consistently surpasses industry benchmarks for quality, performance, and safety.

Resistant to Oil: Durability in Challenging Environments

Notably, UL20379 excels in oil resistance, making it a standout choice for environments with oil exposure. This feature ensures durability and reliability even in demanding conditions, reducing maintenance and replacement needs.

Environmentally Conscious: Lead-Free for a Greener Future

Furthermore, our product is environmentally friendly as it is lead-free, aligning perfectly with modern environmental standards. This commitment to eco-friendliness ensures that you not only have a reliable cable but also contribute to a greener and more sustainable future.

Exceptional Flexibility: Enhancing Usability

UL20379's exceptional flexibility enhances its usability, making it the perfect solution for mobile applications where flexibility is paramount. It simplifies installation, maneuverability, and overall usability, saving you time and effort.

Choose UL20379 for dependable, compliant, and environmentally conscious power cable solutions tailored for mobility. It's the cable that not only meets but exceeds industry standards while prioritizing durability, environmental responsibility, and user-friendliness in mobile applications.

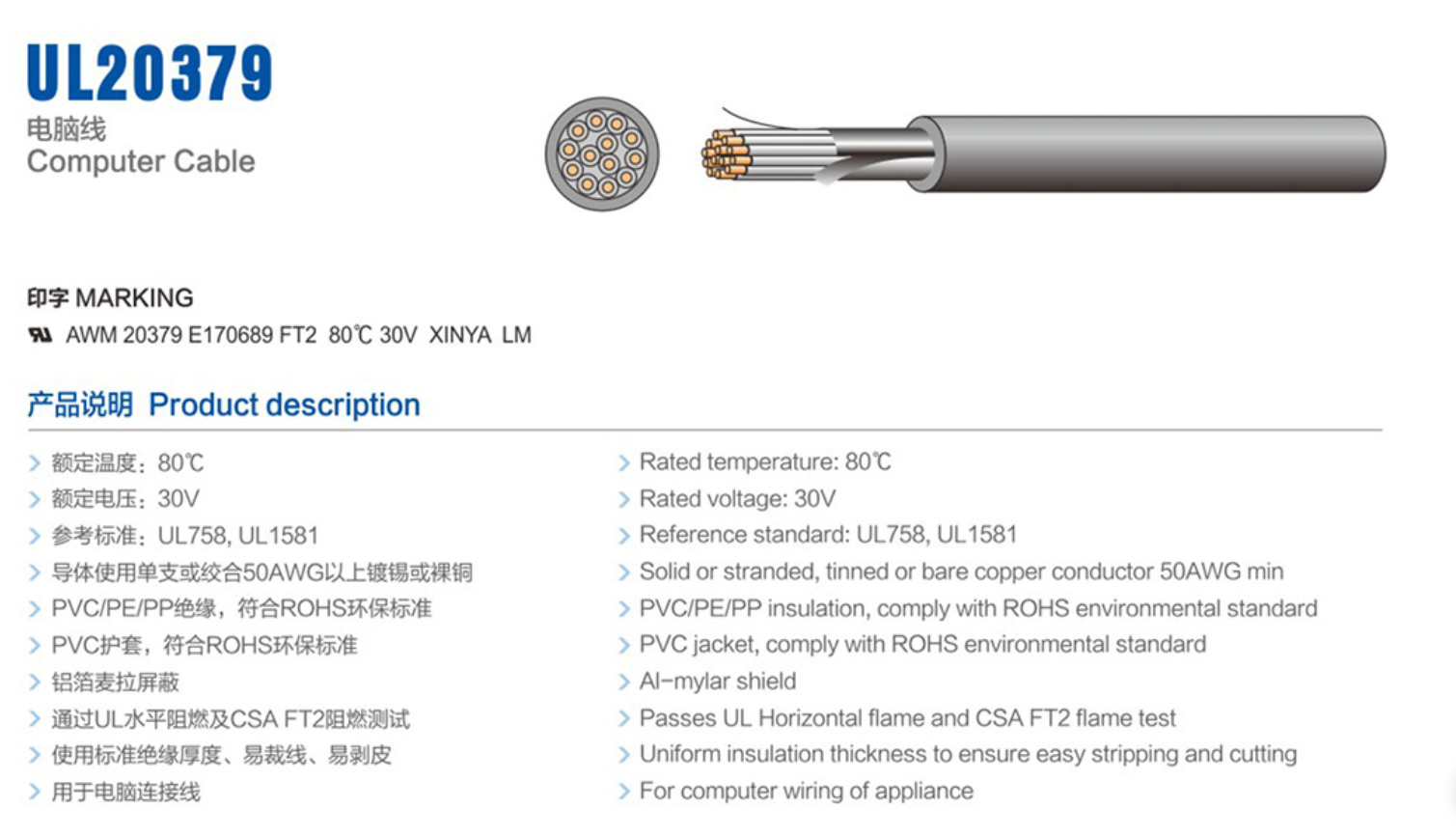

Characteristics of UL 20379 Al-mylar Shield 80℃ Environmentally Friendly Multi Conductor Wire:


Rated temperature: 80℃

Rated voltage: 30V

Reference standard: UL758, UL1581

Solid or stranded, tinned or bare copper conductor 50 AWG min.

PVC/PE/PP insulation, comply with ROHS environmental standard

PVC jacket, comply with ROHS environmental standard

Al-mylar shield

Passes UL Horizontal flame

Uniform insulation thickness to ensure easy stripping and cutting

For computer wiring of appliance

Marking: Guangdong Zhongde Cable Co.,Ltd  AWM STYLE 20379 E536162 nxXAWG 30V 80℃ VW-1

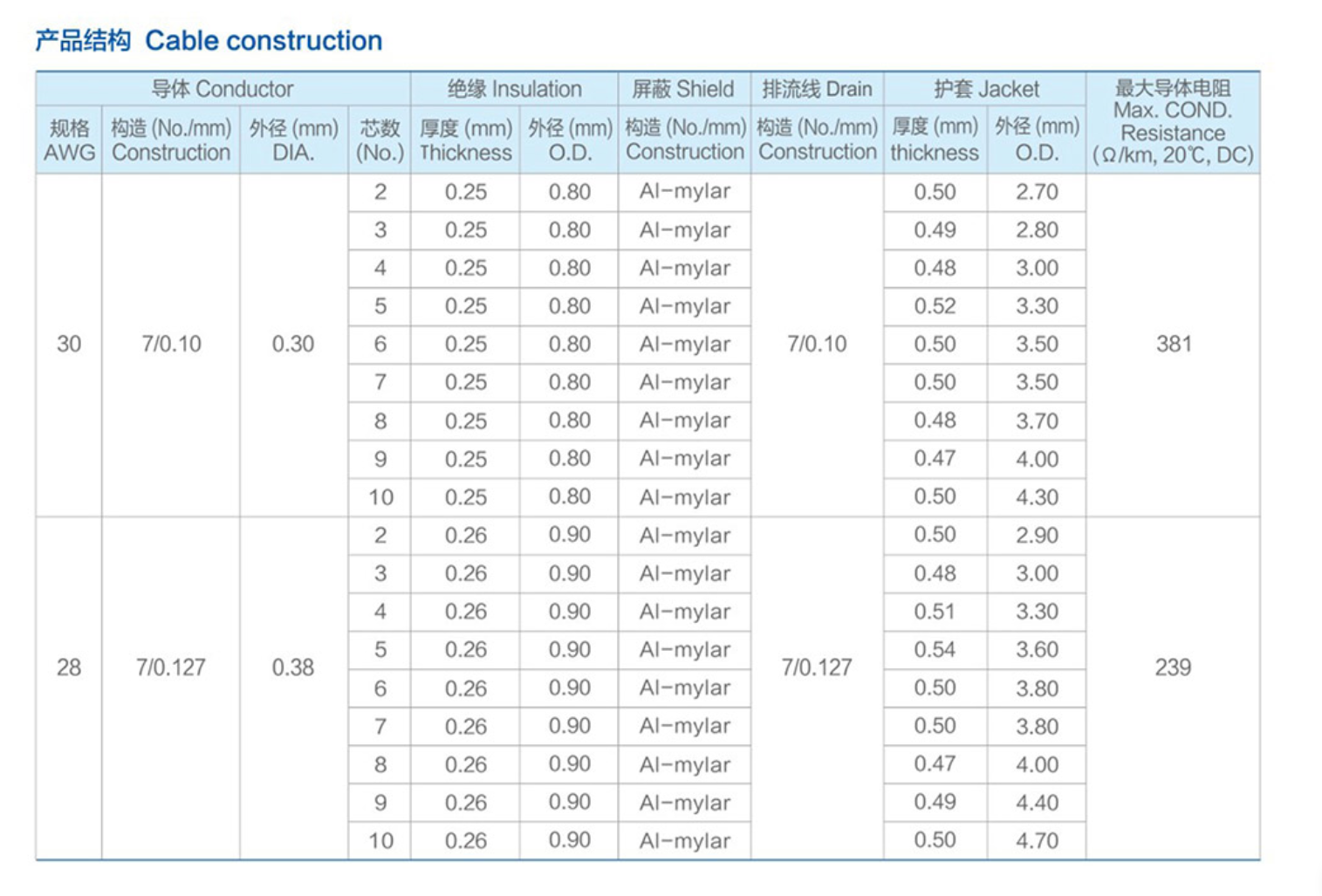

Construction of UL 20379 Al-mylar Shield 80℃ Environmentally Friendly Multi Conductor Wire:


导体Conductor

绝缘Insulation

屏蔽Shield

护套Jacket

最大电阻Max.COND

Resistance

(Ω/km, 20℃, DC)

规格AWG

构造

Construction

(No./mm)

外径(mm)

DIA.

芯数

(No.)

绝缘厚度(mm)

Insulation thickness

外径(mm)

O.D.

构造

Construction

(No./mm)

护套厚度(mm)

Jacket thickness

外径(mm)

O.D.





30





7/0.10





0.30

2

0.25

0.80





Al-mylar

0.50

2.70





381

3

0.25

0.80

0.49

2.80

4

0.25

0.80

0.48

3.00

5

0.25

0.80

0.52

3.30

6

0.25

0.80

0.50

3.50

7

0.25

0.80

0.50

3.50

8

0.25

0.80

0.48

3.70

9

0.25

0.80

0.47

4.00

10

0.25

0.80

0.50

4.30





28





7/0.127





0.38

2

0.26

0.90





Al-mylar




0.50

2.90





239

3

0.26

0.90

0.48

3.00

4

0.26

0.90

0.51

3.30

5

0.26

0.90

0.54

3.60

6

0.26

0.90

0.50

3.80

7

0.26

0.90

0.50

3.80

8

0.26

0.90

0.47

4.00

9

0.26

0.90

0.49

4.40

10

0.26

0.90

0.50

4.70

Please contact for more details.

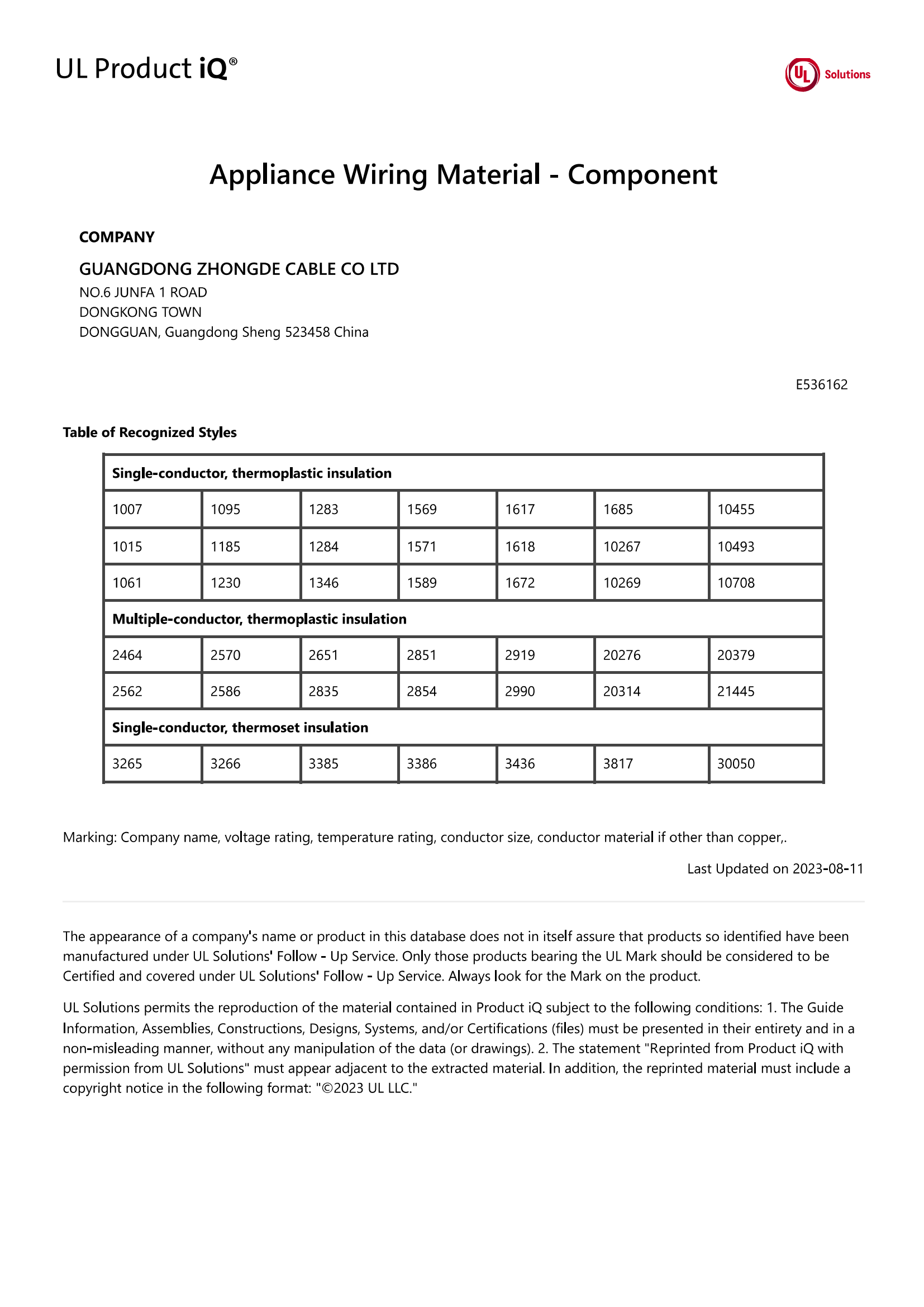

中德UL认证黄卡_00

UL 20379 Al-mylar Shield 80℃ Environmentally Friendly Multi Conductor Wire

UL 20379 Al-mylar Shield 80℃ Environmentally Friendly Multi Conductor WireUL 20379 Al-mylar Shield 80℃ Environmentally Friendly Multi Conductor Wire
