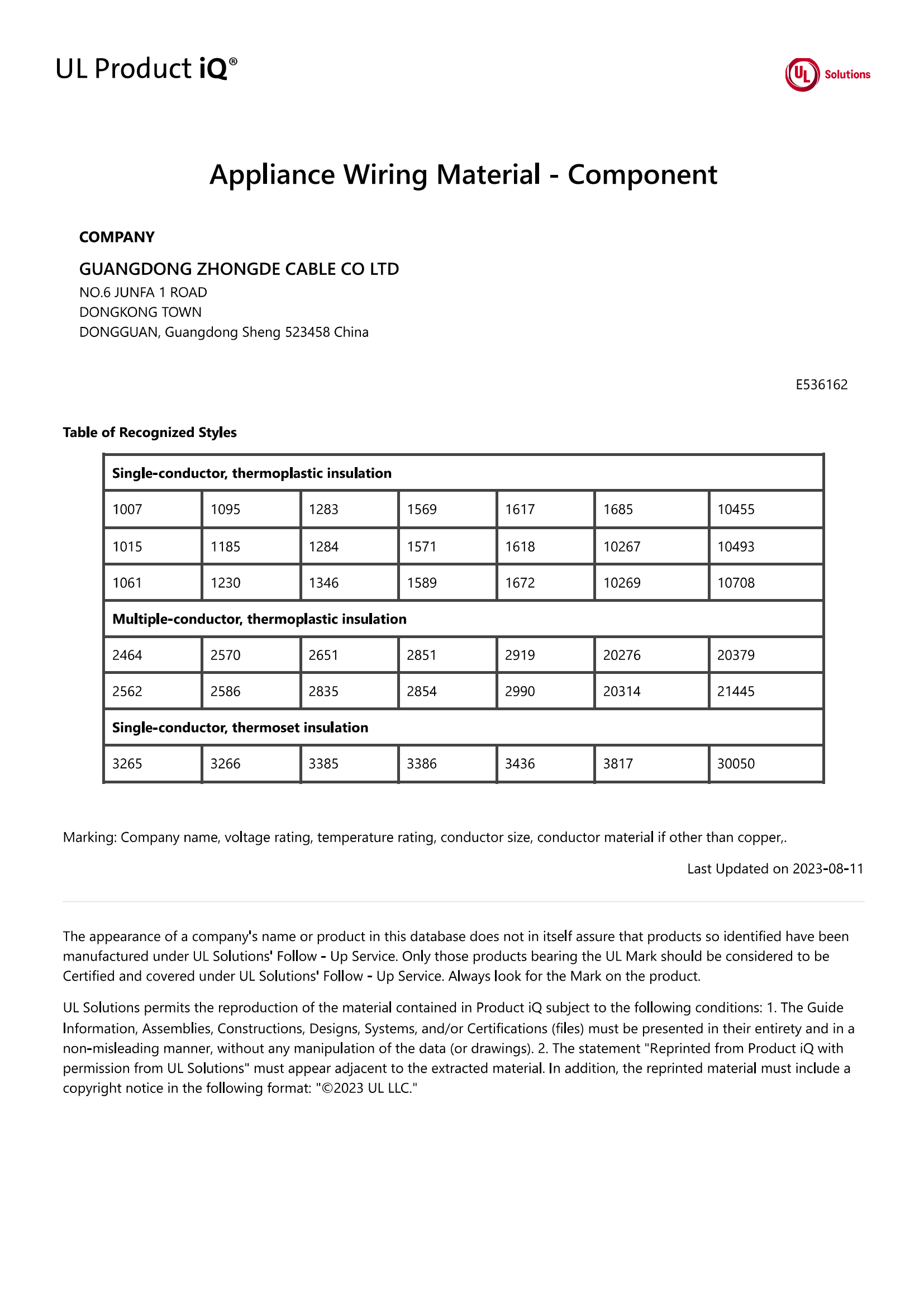

UL 2851 Spiral Shielded Cable
Spiral Shield Multi Conductor Wire for Internal Wiring of Appliance
| 产品说明 Product Description | ||||||||||
| >额定温度：80℃ >额定电压：30V >参考标准：UL758,UL1581 >导体使用单支或绞合40AWG以上镀锡或裸铜 >PVC 绝缘，符合ROHS 环保标准 >镀锡或裸铜缠绕屏蔽 >PVC护套，符合ROHS 环保标准 >通过ULWW-1及JQA-F-Mark阻燃测试 >使用标准绝缘厚度、易裁线、易剥皮 >用于一般电子、电器设备内部连接线 | >Rate temperature:80℃ >Rate voltage:30V >Reference standard:UL758,UL1581 >Solid or stranded,tinned or bare copper conductor 40AWG min. >PVC insulation,comply with ROHS environmental standard >Tinned or bare copper wire spiral shield >PVC jacket,comply with ROHS environmental standard >Passes UL WW-1 and JQA-F-Mark flame test >Uniform insulation thickness to ensure easy stripping and cutting >For general purpose internal wiring of appliance | |||||||||
| 产品结构 Cable Construction | ||||||||||
| 导体Conductor | 绝缘Insulation | 屏蔽Shield | 护套Jacket | 最大导体电阻 Max.COND. Resistance (Q/km,20℃,DC) | ||||||
| 规格 AWG | 构造(No./mm) Construction | 外径(mm) DIA. | 芯数 (No.) | 绝缘厚度(mm) Insulation thickness | 外径(mm) 0.D. | 构造(No./mm) Construction | 护套厚度(mm) .lacket thickness | 外径(mm) 0.D. | ||
| 30 | 7/0.10 | 0.30 | 2 | 0.25 | 0.80 | 45/0.10 | 0.35 | 2.50 | 381 | |
| 3 | 0.25 | 0.80 | 48/0.10 | 0.34 | 2.60 | |||||
| 4 | 0.25 | 0.80 | 54/0.10 | 0.33 | 2.80 | |||||
| 5 | 0.25 | 0.80 | 50/0.12 | 0.35 | 3.10 | |||||
| 6 | 0.25 | 0.80 | 55/0.12 | 0.38 | 3.40 | |||||
| 7 | 0.25 | 0.80 | 55/0.12 | 0.38 | 3.40 | |||||
| 28 | 7/0.127 | 0.38 | 2 | 0.26 | 0.90 | 50/0.10 | 0.35 | 2.70 | 239 | |
| 3 | 0.26 | 0.90 | 54/0.10 | 0.33 | 2.80 | |||||
| 4 | 0.26 | 0.90 | 50/0.12 | 0.34 | 3.10 | |||||
| 5 | 0.26 | 0.90 | 56/0.12 | 0.37 | 3.40 | |||||
| 6 | 0.26 | 0.90 | 62/Dec | 0.38 | 3.70 | |||||
| 7 | 0.26 | 0.90 | 62/0.12 | 0.38 | 3.70 | |||||
| 26 | 7/0.16 | 0.48 | 2 | 0.26 | 1.00 | 55/0.10 | 0.35 | 2.90 | 150 | |
| 3 | 0.26 | 1.00 | 50/0.12 | 0.35 | 3.10 | |||||
| 4 | 0.26 | 1.00 | 56/0.12 | 0.37 | 3.40 | |||||
| 5 | 0.26 | 1.00 | 62/0.12 | 0.38 | 3.70 | |||||
| 6 | 0.26 | 1.00 | 69/0.12 | 0.38 | 4.00 | |||||
| 7 | 0.26 | 1.00 | 69/0.12 | 0.38 | 4.00 | |||||
| 24 | 11/0.16 | 0.61 | 2 | 0.25 | 1.10 | 51/0.12 | 0.38 | 3.20 | 94.2 | |
| 3 | 0.25 | 1.10 | 55/0.12 | 0.35 | 3.30 | |||||
| 4 | 0.25 | 1.10 | 61/0.12 | 0.35 | 3.60 | |||||
| 5 | 0.25 | 1.10 | 68/0.12 | 0.40 | 4.00 | |||||
| 6 | 0.25 | 1.10 | 75/0.12 | 0.43 | 4.40 | |||||
| 7 | 0.25 | 1.10 | 75/0.12 | 0.43 | 4.40 | |||||
| 22 | 17/0.16 | 0.76 | 2 | 0.27 | 1.30 | 60/0.12 | 0.43 | 3.70 | 59.4 | |
| 3 | 0.27 | 1.30 | 64/0.12 | 0.43 | 3.90 | |||||
| 4 | 0.27 | 1.30 | 72/0.12 | 0.46 | 4.30 | |||||
| 20 | 26/0.16 | 0.94 | 2 | 0.28 | 1.50 | 69/0.12 | 0.43 | 4.10 | 36.7 | |
| 3 | 0.28 | 1.50 | 74/0.12 | 0.46 | 4.40 | |||||
