UL2835 Computer Cable

Model:
UL2835
Brand:
ZHONGDE
Rated temperature:
60℃
Rated voltage:
30V

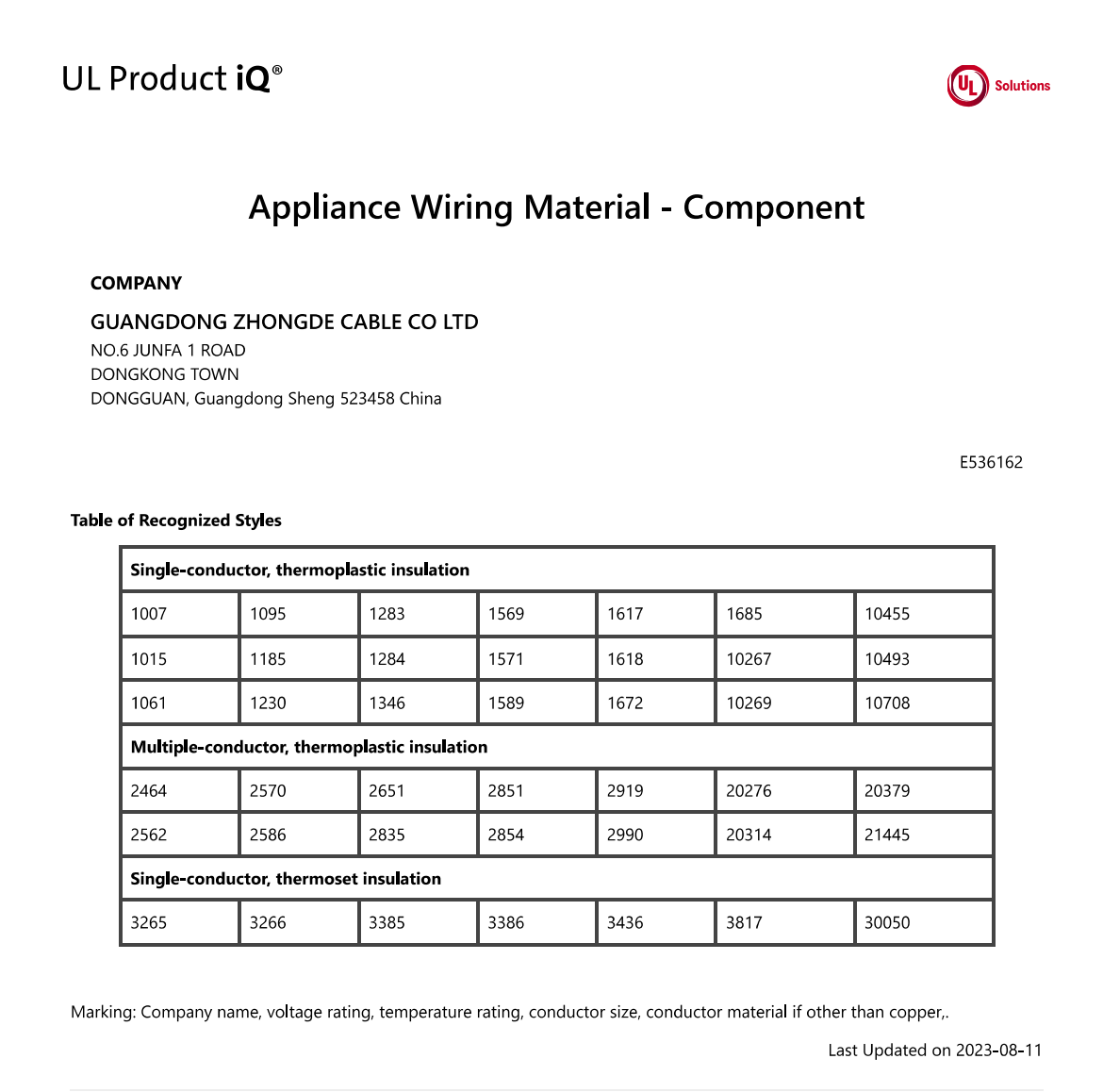

Reference standard:
UL758, UL1581

Availability:



Inquire Add to Basket

Product Description

Braid Conductive Multi Conductor Wire For Computer

产品说明 Product Description
>额定温度：60℃ >额定电压：30V >参考标准：UL758,UL1581 >导体使用单支或绞合40AWG 以上镀锡或裸铜 >SR-PVC绝缘，符合ROHS 环保标准 >镀锡或裸铜编织屏蔽 >PVC护套，符合ROHS环保标准 >通过ULWW-1及JQA-F-Mark阻燃测试 >使用标准绝缘厚度、易裁线、易剥皮 >用于一般电子、电器设备内部连接线						>Rated temperature:60℃ >Rated voltage:30V >Reference standard:UL758,UL1581 >Solid or stranded,tinned or bare copperconductor 40AWG min >SR-PVC insulation,comply with ROHS environmental standard >Tinned or bare copper wire braid shield >PVC jacket,comply with ROHS environmental standard >Passes ULWW-1 and JQA-F-Mark flame test >Uniform insulation thickness to ensure easy stripping and cutting >For general purposeinternal wiring of appliance
产品结构 Cable Construction
导体 Conductor				绝缘 Insulation			屏蔽 Shield	排流线 Drain	编织 Braid	护套 Jacket		)	最大导体电阻 Max.COND. Resistance
规格 AWG	构造 Construction (No./mm)	外径(mm) DIA.	芯数 (No.)	绝缘厚度(mm) Insulation thickness	外径(mm) O.D.		构造 Construction (No./mm)	构造 Construction (No./mm)	构造 Construction (No.No.mm)	护套厚度(mm) Jacket thickness	外径(mm O.D.
												(Q/km,20℃,DC)
30	7/0.10	0.30	2	0.25	0.80		Al-mylar	7/0.10	16/4/0.10	0.50	3.10	381
			3	0.25	0.80		Al-mylar		16/4/0.10	0.54	3.30
			4	0.25	0.80		Al-mylar		16/4/0.10	0.54	3.50
			5	0.25	0.80		Al-mylar		16/5/0.10	0.52	3.70
			6	0.25	0.80		Al-mylar		16/6/0.10	0.55	4.00
			7	0.25	0.80		Al-mylar		16/6/0.10	0.55	4.00
			8	0.25	0.80		Al-mylar		16/6/0.10	0.53	4.20
			9	0.25	0.80		Al-mylar		16/7/0.10	0.57	4.60
			10	0.25	0.80		Al-mylar		16/7/0.10	0.60	4.90
28	7/0.127	0.38	2	0.26	0.90		Al-mylar	7/0.127	16/4/0.10	0.50	3.30	239
			3	0.26	0.90		Al-mylar		16/5/0.10	0.53	3.50
			4	0.26	0.90		Al-mylar		16/5/0.10	0.51	3.70
			5	0.26	0.90		Al-mylar		16/6/0.10	0.54	4.00
			6	0.26	0.90		Al-mylar		16/6/0.10	0.55	4.30
			7	0.26	0.90		Al-mylar		16/6/0.10	0.55	4.30
			8	0.26	0.90		Al-mylar		16/7/0.10	0.57	4.60
			9	0.26	0.90		Al-mylar		16/7/0.10	0.59	5.00
			10	0.26	0.90		Al-mylar		24/5/0.10	0.60	5.30
